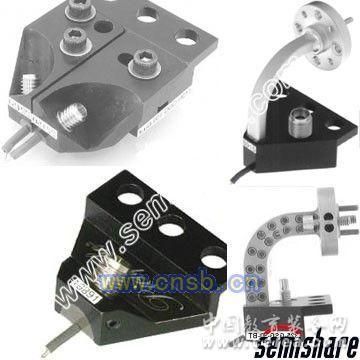

產品詳細介紹Picoprobe® 高阻抗有源探頭:
1
Model 7 and Model 7A(dc to 500 Mhz, 50 ohm)
2
Model 12C (dc to 500 Mhz, 1 Megohm/0.1pF)
3
Model 34A(dc to 3.0 GHz, 10 Megohm/0.1pF)
4
Model 35(dc to 26.0 GHz, 1.25 Megohm/0.05pF)
5
Model 18C and Model 19C (dc to 350 Mhz, 10 femtoamps/0.02pF)
6
Model 28 and Model 29(dc to 1 Ghz, 10 femtoamps/0.04pF)
微波測試:
7
Model 10 (dc to 11 GHz )
8
Model 40A (dc to 40 GHz / 2.9mm K connector input) available with nickel alloy contacts for probing aluminum pads
9
Dual / Differential Microwave Probe (two microwave probes on one positioner - 40A, 50A, 67A, or 110H)
10
Model 40M (ultra low loss - dc to 40 GHz)
11
Model 50A (dc to 50 GHz / 2.4 mm connector input)
12
Model 67A (dc to 67 GHz / 1.85 mm V connector input)
13
Model 110H (dc to 110 GHz / 1.0 mm connector input)
14
Integrated Balun Probes
15
Multi-Contact Wedge (combines multiple RF and DC contacts - dc to 40, 50, 67 or 110 GHz)
16
Probe Cards(surrounds a circuit with high-density RF and DC contacts - dc to 40, 50, 67 or 110 GHz)
17
Model 50 (33 - 50 GHz / WR-22 waveguide input)
18
Model 75 (50 to 75 GHz / WR-15 waveguide input)
19
Model 90 (60 to 90 GHz / WR-12 waveguide input)
20
Model 120 (75 to 120 GHz / WR-10 waveguide input)
21
Model 140(90 to 140 GHz / WR-8 waveguide input)
22
Model 170 (110 to 170 GHz / WR-6 waveguide input)
23
Model 220 (140 to 220 GHz / WR-5 waveguide input)
24
Model 325 (220 to 325 GHz / WR-3 waveguide input)
25
Calibration Substrates (for probe tip calibration - available in 9 standard models)
26
Differential Calibration Substrates(for two, three or four port probe tip calibrations )
直流探針:
27
T-4 Series Tungsten Probe Tips(A small diameter Tungsten wire attached to a larger wire body)
28
ST-Series Solid Tungsten Probe Tips (A large diameter solid Tungsten shaft precision tapered to a durable point) |
|
