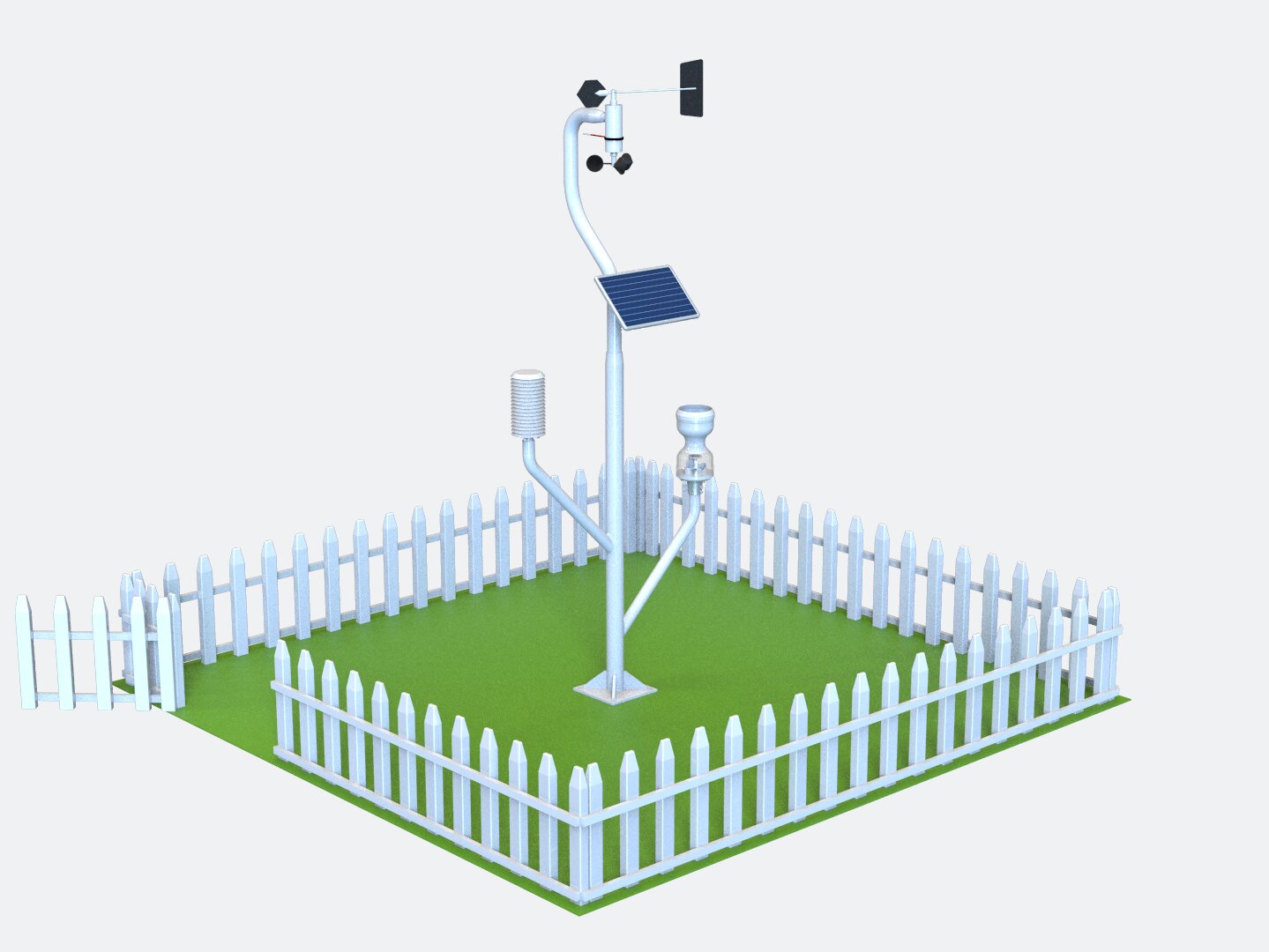

        校園數字氣象站















                                                                                                                            折 扣 率： 0


                  最后更新：2024-06-12

                  關 注 度：623

				  生產企業：石家莊市艾迪科教設備有限公司














                                            在線詢價留言








                與企業聯系時請告知該信息來自教育裝備網！









                        分享到：

       更多
























              產品詳細介紹<p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		一：產品結構尺寸&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		高度3000mm,底座尺寸：800*800mm&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		二：十參數專業傳感器&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		監測參數：氣溫、相對濕度、氣壓、風速、風向、降雨量、PM2.5、PM10、噪聲、光照度、紫外線&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		三：核心網關控制系統&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		1）數據采集器&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		2）4G通訊模塊 （GPRS無線帶物聯網卡（含30G/年數據流量，免費1年）&nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		3）控制箱：尺寸400*500*250mm&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		四：太陽能供電系統&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		1）單晶硅太陽能電池組件100W&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		2）新能源鋰電池12V30AH&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		五：LED戶外顯示器
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		3*3屏幕帶外殼尺寸：1040*520*138mm&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		六：物聯網平臺&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		提供氣象數據查看功能，包括實時數據、數據變化趨勢圖查看。提供各氣象要素統計查詢功能，包括各氣象指標的平均值、最大值、最小值等數據統計。結合信息科技教學課程，提供相關教學功能&nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		七：微信小程序&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;
	</p>
	<p style="font-family:tahoma, arial, &quot;color:#333333;background-color:#F7F7F7;">
		通過小程序，用戶可以快速查看氣象要素數據。該小程序提供實時數據顯示和歷史數據查看功能，并且支持按照不同時間維度進行數據查詢。用戶可以選擇按天、按周或按月來查看相關歷史數據
	</p>
	<p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			一.IOT
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			平臺具備：設備管理、模型管理、外設管理、視圖管理、視頻管理、控制管理、定時任務等功能。
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			二：系統管理
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			用戶管理：用戶是系統操作者，該功能主要完成系統用戶配置，在線用戶的角色管理、菜單管理、菜單管理、部門管理等功能。
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			三：可視化管理&nbsp;
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			主要查看各網關連接的傳感器數據、控制各網關連接的控制類開關、查看不同數據之間的對比詳情、查看視頻監控、生成快生長視頻監測植物生長狀態
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			四：其他&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			1）平臺搭建環境：Linux，編寫語言：Java，平臺協議兼容性：支持MQTT、CoAP、HTTP設備連接協議，平臺支持的接口類型：websocket、rpc、http；
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			2）數據采集和平臺可視化自適應：可以擴展實時顯示超120種傳感器數據，平臺可以根據不同的傳感器自適應識別和顯示；
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			3）物聯網平臺自組態模塊：平臺數據顯示多種圖形模塊選擇，可以根據不同場景需求自由拖拽組合和顯示，超十種豐富組件可供調用，功能強大的應用庫隨建隨用；
		</p>
		<p style="font-family:tahoma, arial, &quot;color:#333333;">
			4）多端訪問：支持手機web端、小程序端、電腦Web端三種客戶端訪問方式，且三端數據實時同步；手機Web 端和小程序端支持二維碼掃碼訪問。
		</p>
	</p>
</p>
<p>
	<img src="/userfiles/image/20240612/20240612190154_80754.png" alt="" /><img src="/userfiles/image/20240612/20240612190208_32557.png" alt="" /><img src="/userfiles/image/20240612/20240612190302_28604.png" alt="" />
</p>
